Hardening Cabinet

Introducing the revolutionary Hardening Cabinet from Emery Thompson Machine and Victory by
Carpigiani. This specialized hardening cabinet is designed to optimize your business’s
productivity and space utilization. With the ability to maintain temperatures as low as -25°F, it ensures the preservation of ice cream, gelato, and Italian ice at their peak quality. Featuring dual compressors, customizable temperature settings, and ample storage capacity for various container sizes, this hardening cabinet is the perfect solution for businesses seeking to expand production without investing in larger hardening cabinets.

Designed Around Your Operation
We believe every batch should be as fun to make as it is to eat.

  1. Freeze-and-eject process puts on a show for guests
  2. Simple, adjustable mix flow regulators
  3. Straightforward assembly and cleaning
  4. Space-saving footprints
  5. Fully refrigerated hoppers for better food safety
  6. Ideal for bakeries, cafés, ice cream shops, fine dining and beyond

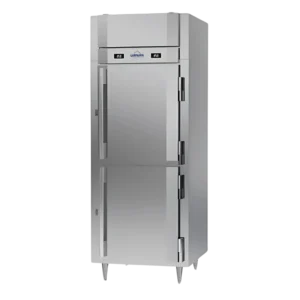

Hardening Cabinet

MODEL ICH-1D
Hardening Cabinet

Introducing the revolutionary Hardening Cabinet from Emery Thompson Machine and Victory by
Carpigiani. This specialized hardening cabinet is designed to optimize your business’s
productivity and space utilization. With the ability to maintain temperatures as low as -25°F, it ensures the preservation of ice cream, gelato, and Italian ice at their peak quality. Featuring dual compressors, customizable temperature settings, and ample storage capacity for various container sizes, this hardening cabinet is the perfect solution for businesses seeking to expand production without investing in larger hardening cabinets.

Say goodbye to space constraints and hello to increased efficiency with the Hardening Cabinet.

SPECIFICATIONS

Characteristics
Net Capacity (cubic ft.) 2 x 10.2
Width, Overall (in.) 31 1/4”
Depth, Overall (with handle) 35”
Height Overall (6” legs) 84 1/8”
Depth, Door Open 90° 59 1/8”
Door Opening (in.) 22 15/16” x 24 3/4”
No. Of Doors/Shelves 2/4

Electrical Data
Cabinet Voltage 115/60/1
Total Amperes 2X 7.2
(Note: There Is One Power Cord)
NEMA Plug (8’ cord) 2X 5-15P

Refrigeration Data
Condensing Unit Size, HP 2X 3/4
Refrigerant R-290
Capacity (BTU/HR) (100°F/20°F) 2X 1600
Heat Rejection (BTU/HR) 2X 2400
Charge (grams) 2X 85 g

CAPACITIES
2.5 Gallon Ice Cream Tubs With Racks 16
3 Gallon Ice Cream Tubs Without Racks 16
2.5 Gallon Ice Cream Tubs Without Racks 24
5 Liter Std (14.17 x 6.49 x 4.72) Pans 28
3 Gallon Ice Cream Tubs With Racks 12
Large 5 Liter (14.17 x 9.84 x 3.14) Pans 16

Shipping Details
Height 87”
Width 39”
Depth 41”
Crated Weight 462 lbs
